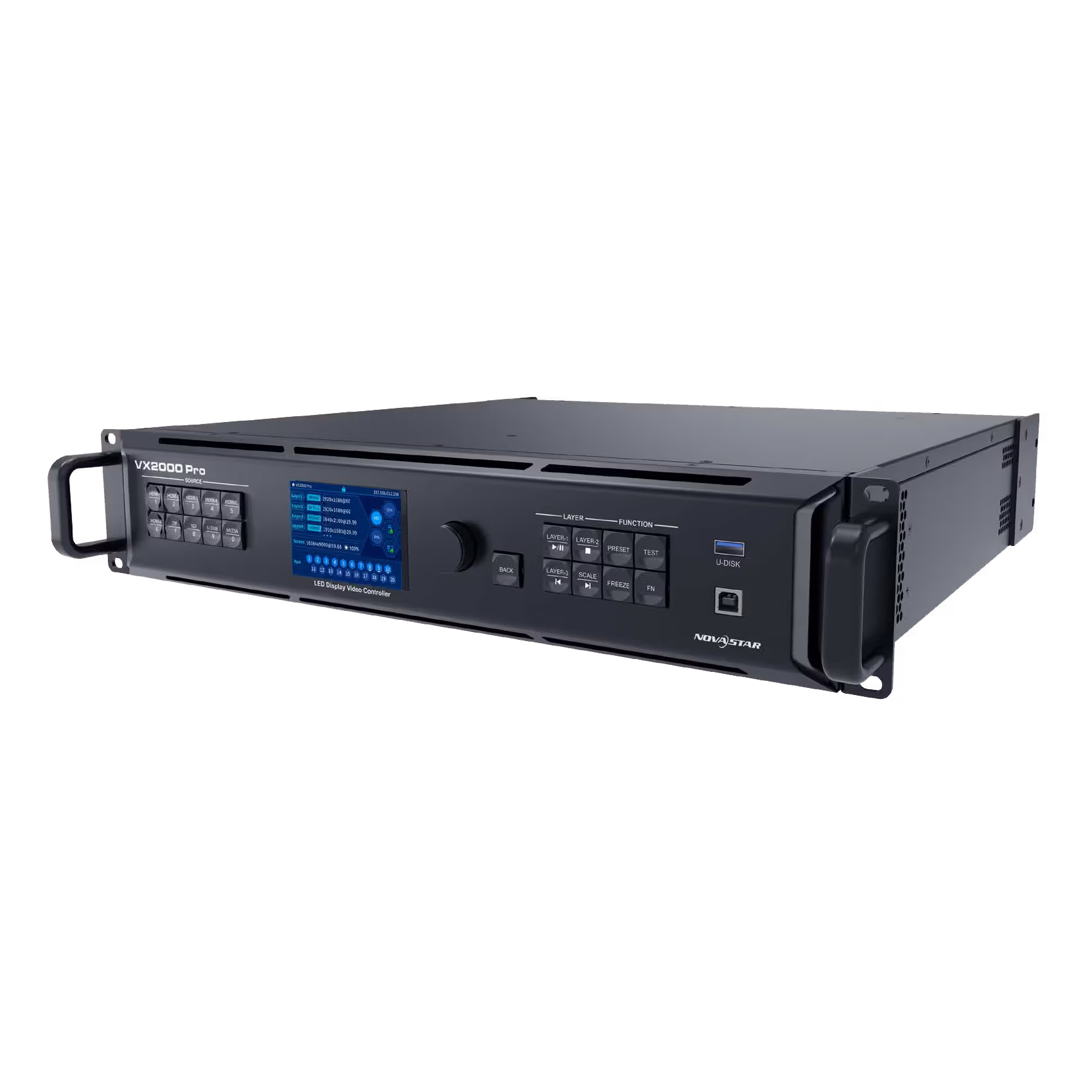

VX2000 pro all-in-one controller

The VX2000 Pro is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. The VX2000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

  • Real 4k inputs
  • Loading capacity beyond 4k
  • Up to 12 x 2k layers or 3 x 3k layers, all layers support roaming and scaling
  • USB playback for convenient testing and video playback
  • Multiple operation methods, use VICP app, front panel and Unico to switch inputs and presets
  • Flexible fiber solution
  • Independent audio connector
  • Free topology
Categories: , ,

Additional information

Weight 8.9 lbs
Dimensions 5.08 × 48.26 × 33.78 cm
Comprehensive Range of Input Connectors 1x DP 1.2 2x HDMI 2.0 4x HDMI 1.3 1x 12G-SDI (IN & LOOP) 2x 10G optical fiber ports (OPT 1/2) 1x USB 3.0 1x Genlock (IN & LOOP)
Output Connectors 20x Gigabit Ethernet ports, 2x Fiber outputs, 1x HDMI 1.3, 1x 3D connector
Self-Adaptive OPT 1/2 These ports can function as either video input or sending card output, depending on the connected device.
HDMI Mosaic Create an input source from up to 4 HDMI input sources.
Fiber Input Mosaic Use the input source connected through OPT 1/2 either independently or combined for a mosaic input source.
Audio Input and Output Audio input with HDMI and DP sources. 3.5 mm independent audio input and output. Adjustable output volume.
Image Mosaic Connect up to 4x VX2000 Pro units through cascading.
Free Layout Maximum resolution up to 13 million pixels, excluding blank spaces not loaded by receiving cards for optimal network port bandwidth utilization.
Low Latency Output Enable low latency feature and ByPass mode to reduce delay to less than 1ms.
Output Synchronization Sync output images of all cascaded units using an internal input source or external Genlock.
EDID Management Import and export EDID files for flexible configuration.
Easy Preset Saving and Loading Supports up to 256 user-defined presets. Load a preset with a single button press. Save, overwrite, and delete presets. Preview the layer layout saved in presets. Synchronize presets to Unico.
Multiple Layer Display Supports 12x SL layer resources. Create layers in three specifications (4K, DL, SL) using 4, 2, or 1 layer resources respectively. Adjustable layer size, position, priority, and aspect ratio.
OSD Settings Supports one OSD display. Import and save up to 6 OSDs. Supported OSD types: text, image, digital clock, weather, and table.
BKG Settings Supports pure color or image backgrounds.
3D Function Connect EMT200 3D emitter to the Ethernet port and use compatible 3D glasses. Connect third-party 3D emitter to the 3D connector for a 3D visual experience.
Personalized Image Scaling Supports full screen, pixel to pixel, and custom scaling modes.
Powerful Video Processing Utilizes SuperView III image quality processing technologies for seamless output scaling. One-click full screen display
  • Real 4k inputs
  • Loading capacity beyond 4k
  • Up to 12 x 2k layers or 3 x 3k layers, all layers support roaming and scaling
  • USB playback for convenient testing and video playback
  • Multiple operation methods, use VICP app, front panel and Unico to switch inputs and presets
  • Flexible fiber solution
  • Independent audio connector
  • Free topology
 		VX2000 pro User Manual
VX2000 pro Spec Sheet
